Simple, Powerful Conferencing Experience

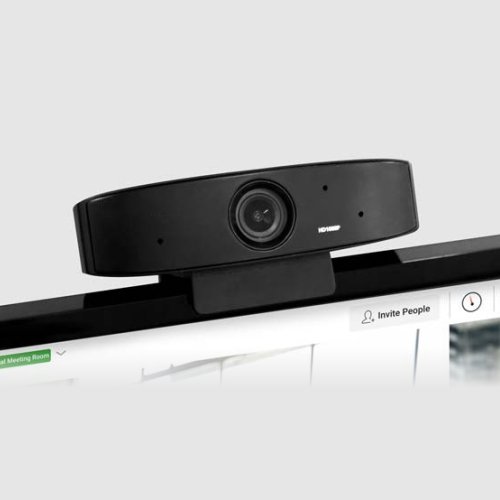

Easy to use, plug and play USB video conferencing device for customers looking to use with their laptops. Connects to any system, regardless of the type of call control, providing a high quality 1080p30 video signal, with digital Pan Tilt Zoom.
Features
- Affordable for personal/desktop audio/video conferencing
- 1080p30 resolution
- 4x digital zoom (EPTZ)
- 85° horizontal field of view
| Camera Model | SAICAM | Camera Model | SAICAM |
|---|---|---|---|
| Image Device | CMOS 1/2.8'' | Video Formats | 1080p30 / 720p30 |
| Video Signal | Compressed (H.264) on USB | Focal Length | f=2.8mm |
| Min Object Distance (wide) | 100 mm | Min Illumination | 0.5 Lux @ (F2.0, AGC ON) |
| HFoV | 85° | VFoV | 55° |
| Optical Zoom (*) | N/A | Digital Zoom (*) | 4x |
| Pan Range | ePTZ | Tilt Range | ePTZ |
| Serial Control | UVC via USB | Ceiling Mount | N/A |
| Camera Mount | Tripod screw hole (1/4-20 UNC) | Weight | 93 g |
| Dimensions w/h/d | 118mm x 37.2mm x 30.8mm | Current Consumption (max) | 200mA |
| 3rd Party Clients Supported | MS® Teams, MS® SfB, Skype®, Zoom®, Bluejeans®, Starleaf®, Pexip®, Cisco Webex®, Google Hangouts® | Video Configurations | Same as other huddle cams, but via UVC |
| Voltage Range | 5V (USB power supply) | IR Repeater as TTL Signal | Not available |
| Camera Output | USB 2.0 | Microphone | Included |
| Presets | 10 when controlled from UVC commands, 122 when controlled from XT or CU360 | Far End Camera Control | Through XT or CU360 codec (H.224, H.281) or third party App |
