Simple, Powerful Conferencing Experience

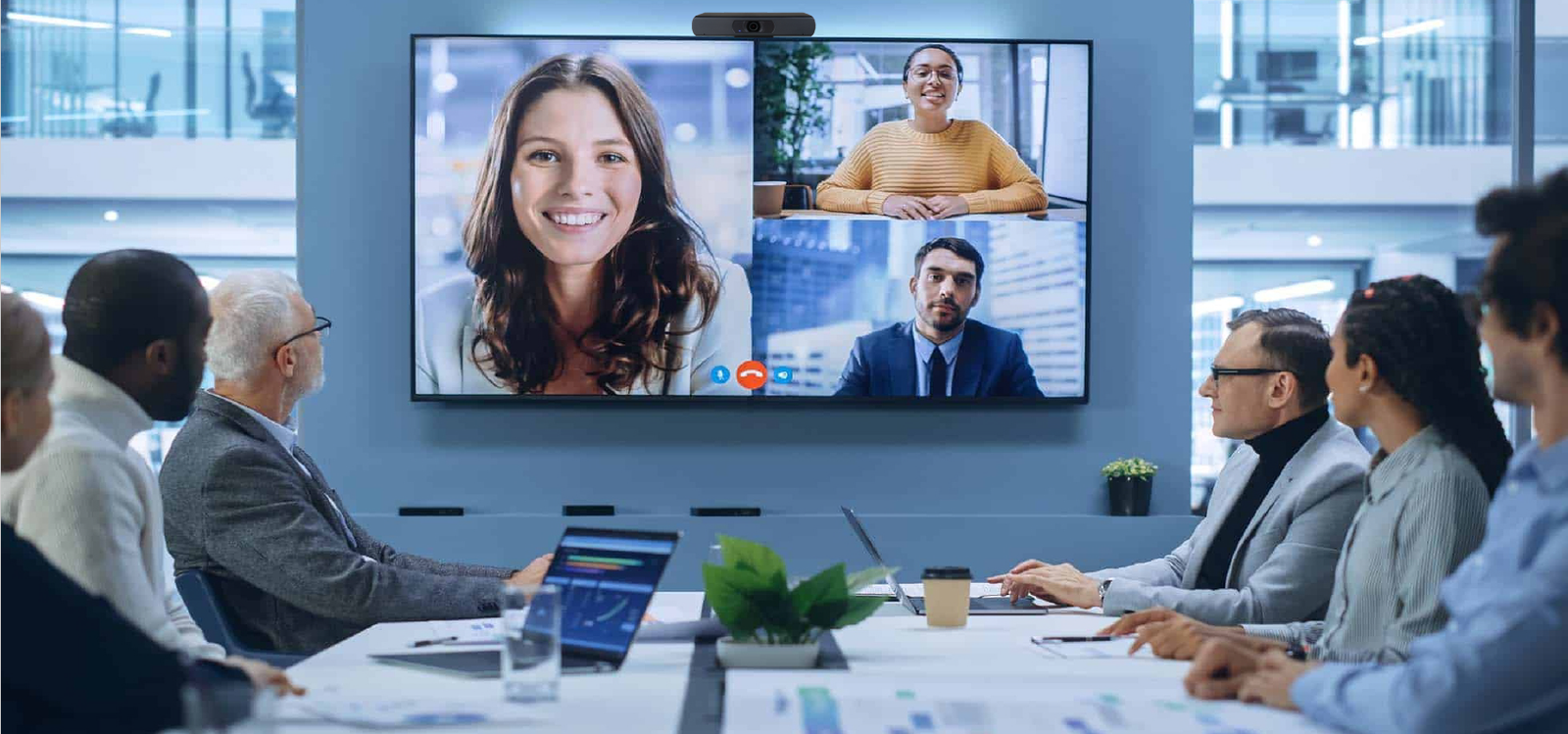

Now everyone can be in the room-without being in the room. Outfit small meeting rooms and huddle spaces with a full HD USB fixed camera that provides a 1080p30 video signal, a 105-degree horizontal field of view, and 8x digital zoom.
Features
- Affordable enterprise capability for Huddle Room audio/video conferencing
- 2160p30 resolution
- 8x digital zoom (EPTZ)
- 104° up to 123° horizontal field of view
| Camera Model | SAICAM-HD | Camera Model | SAICAM-HD |
|---|---|---|---|
| Image Device | 4K@30/25 CMOS 1/2.7’’ | Video Formats | 2160p30/25 - 1080p60/50/30/25 (up to 1080p30 on XT 720p30 on CU360) |
| Video Signal | Compressed (H.264) on USB | Focal Length | f=2.8mm |
| Min Object Distance (wide) | 500 mm | Min Illumination | 0.05 Lux @ (F1.8, AGC ON) |
| HFoV | 104° (up to 123°) | VFoV | 68° (up to 80°) |
| Optical Zoom (*) | N/A | Digital Zoom (*) | 8x |
| Pan Range | ePTZ | Tilt Range | ePTZ |
| Serial Control | UVC via USB | Ceiling Mount | Supported |
| Camera Mount | Tripod screw hole (1/4-20 UNC) | Weight | 0.34 Kg |
| Dimensions w/h/d | 194mm x 34mm x 42mm | Current Consumption (max) | 600mA |
| 3rd Party Clients Supported | MS® Teams, MS® SfB, Skype®, Zoom®, Bluejeans®, Starleaf®, Pexip®, Cisco Webex®, Google Hangouts® | Video Configurations | White balance (auto/manual); Focus Mode (auto/manual); Sharpness; Backlight; Exposure Compensation; Picture (auto/manual) and WDR level |
| Voltage Range | 5V (USB power supply) | IR Repeater as TTL Signal | Not available |
| Camera Output | USB 3.0 - HDMI | Microphone | Included |
| Presets | 10 when controlled from camera remote or UVC commands, 122 when controlled from XT or CU360 | Far End Camera Control | Through XT or CU360 codec (H.224, H.281) or third party App |
