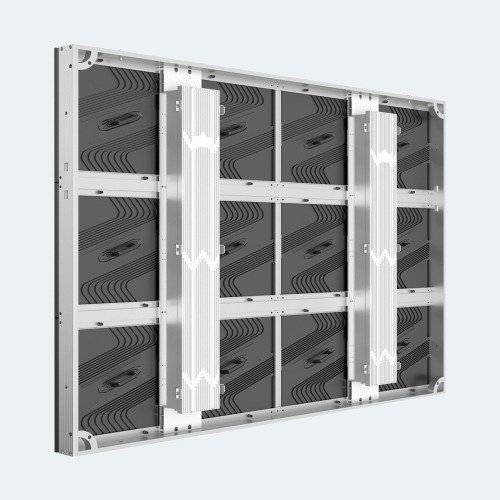

Outdoor LED Video Wall Display
An outdoor LED video wall is a unique display screen mounted on the façade of a building that dramatically transforms the look of the building and makes it come alive. This giant screen from SAIPUR offers a wide panoramic view that looks spectacular, especially because the picture quality is very good. Operating it is quite easy as it is perfectly compatible with several devices like desk top PCs and mobile devices like smartphones and tablets.
Features
- Ready-to-use panel
- Performance
- Flexible splicing
- Quick installation & service
- Rainstorm resistant 100%
| Parameter | P3.9 | Parameter | P3.9 |
|---|---|---|---|
| Pixel pitch | 3.9mm | Lamp | SMD2727 |
| Pixel Density Dots/m² | 62500 | Module resolution | 128×256 |
| Module size | 250mm × 250mm | Scan mode | Static current 1/16 Scan |
| Brightness | 1000 | Cabinet size | 500mm × 1000mm / 500mm × 500mm |
| IP Rate | IP65 | Color temperature | 3200K-9300K |
| View Angle V/H | 120°-160° | Signal Processing | 10bits or 16bits |
| Control Distance | CAT5 cable < 100m, Multimode optic fiber < 500m, Singlemode optic fiber > 2km | Refresh frequency | 60 Hz |
| Refresh Rate | > 1000 Hz | MTBF | > 5000 Hours |
| Lifespan | 100000 Hours | Working Temperature | -35℃ to 60℃ |
| Storage Temperature | -40℃ to 75℃ | M² Power consumption (MAX) | < 1200W |
| M² Power consumption (AVE) | < 600W | Video display function | Synchron display kinds of text, graphics, pictures, signs,flashes, and any signal from TV, VCD, DVD, Camera, and scanner and so on, support PAL, NTSC. |
